Restmoment original full digital conference technique, compliant to IEC 60914 international standard; The sound is near CD quality.
Ø Restmoment original full digital conference technique, compliant to IEC 60914 international standard.
Ø Built-in 24 points self restraint return function. The sound is near CD quality.
Ø Sampling frequency reaches 48K; Frequency response is 30Hz – 20KHz.
Ø Elegant embedded design, fashion and modern.
Ø Embedded on armrest or tabletop; Worked with voting panel and channel selector panel to achieve more functions.
Ø Speaking unit has protective cover to protect against dust and water. Once it is not working, the table is smooth.
Ø All digital audio transmission technique, point to point connection mode, remote transmission won’t influence on sound quality. Distance between equipments could reach at 150m.

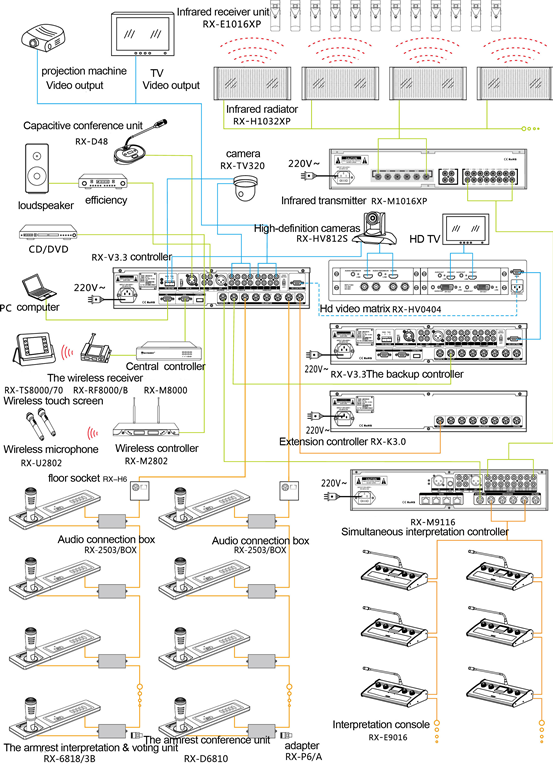

Ø The system is connected by audio connection boxes with “Hand in hand ring”. In “hand in hand ring”, the system will not be effected if there is a disconnection in ring.
Ø Support”PnP” to keep system’s safty and stability.
Ø Each unit has arbitrary distribution ID address, convenience for installation and avioding ID address repeating.
Ø Adjust gain and balanced (5) individually; Adjust volume and frequency response for different speaker sounds to achieve perfect sound finish.
Ø Strong anti-interference from mobile phone; Anti-interference from external driving source.
Ø Directivity capacitive microphone with power on indicator light.
Ø There is a ON/OFF switch on handheld microphone.
Ø Handheld microphone has 2M slingshot line.(elongated)
Ø 5 work modes
● Limited mode ● FIFO mode
● Apply mode ● Voice activating mode ● Free discussion mode
Ø Work in Restmoment 6 series systems.
Ø Cooperated with video controller and camera, have video tracing function.
Ø Working with management software to achieve more functions.
|Unit mode||Handheld microphone unit|
|Capacity of system||Depends on system controller, ≦65535|
|Frequency respond||30-20KHz(Human voice golden Frequency respond)|
|sensitivity of MIC||-47Db|
|Total harmonic distortion||<0.45%|
|Working current||80ma, ±5%|
|Editting number||Distributed by system controller|
|Connection mode||Distribution box hand in hand connection|
|Color||Grey ,Black, Silver (Custom-made)|
|Installation||Embedded or suspensed|
